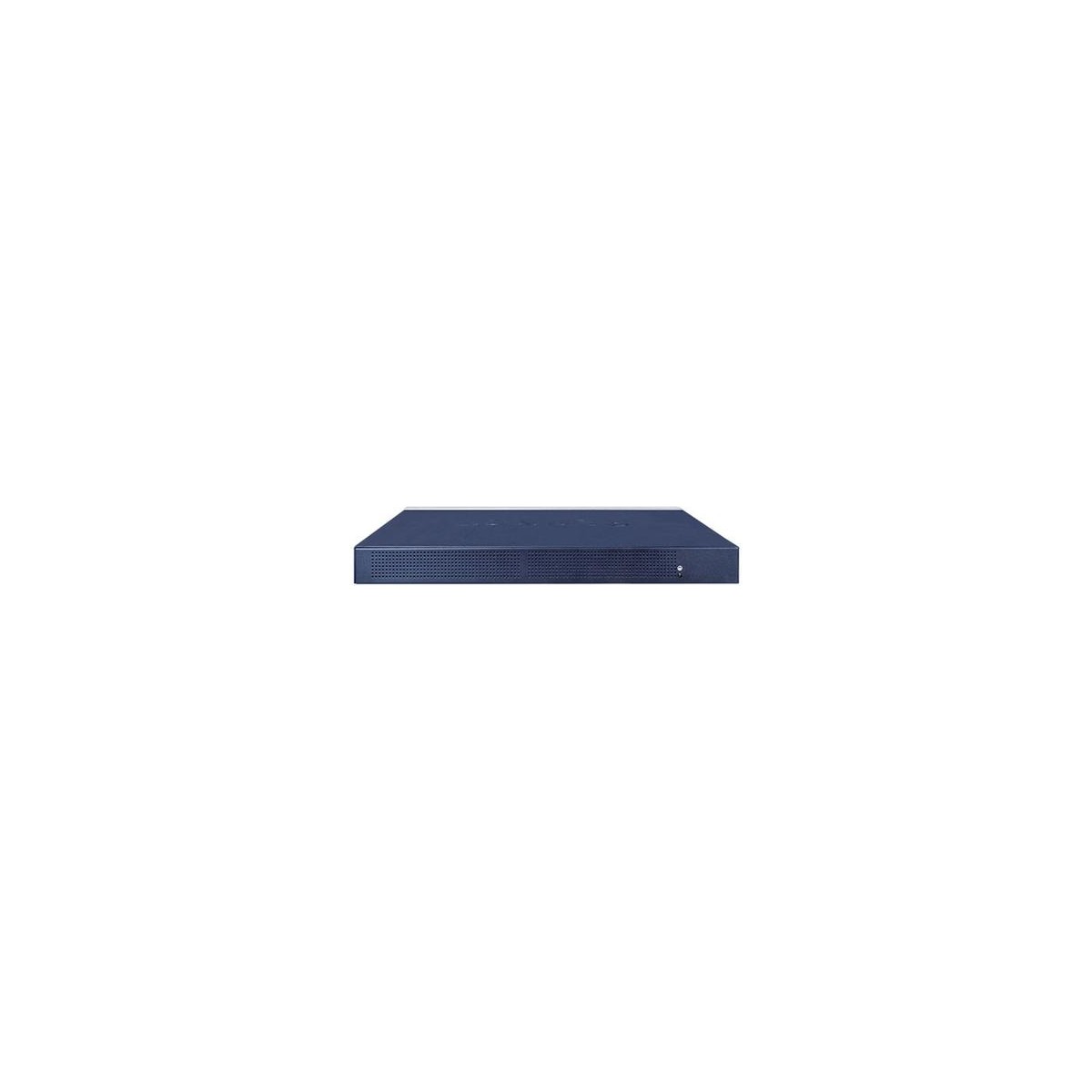

PL-IGS-6325-24P4S 24 Port Gigabit Poe+ 4 Sfp 4 Port Sfp+ 440W L3 Yönetilebilir Switch
ToptanMagaza Puanı : 46.800
| Fiyat | : | 56.160,00 TL |
| Havale / EFT | : | 52.790,40 TL |
| Kredi Kartı Tek Çekim | : | 54.475,20 TL |
5.896,80 TL'den başlayan taksit seçenekleri için tıklayın.
Endüstriyel Tip Yönetilebilir Ethernet Switch (Industrial Managed Ethernet Switch) L3
24-Port 10/100/1000T 802.3at/af PoE+ (Per port 36 watt) (PoE Güç Bütçesi maks. 440 watt)
4-Port Paylaşımlı 100/1000X SFP yuva (Port-21 ile Port-24 arası)
| Hardware Specifications | |
|---|---|
| Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24 Compatible with 100BASE-FX SFP transceiver |
| PoE Injector Port | 24 ports with 802.3af/at PoE injector function with Port-1 to Port-24 |
| Console | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 48Gbps/non-blocking |
| Throughput (packet per second) | 35.71Mpps@ 64 bytes packet |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 32M bits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| ESD Protection | 5KV DC |
| Enclosure | IP30 metal case |
| Installation | Rack-mountable kit |
| Connector | Fixed 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| DI & DO | 2 digital input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Max. input current: 10mA 2 digital output (DO): Open collector to 24V DC, 100mA max. |
| LED Indicators | System: DC 1 (Green) DC 2 (Green) Fault Alarm (Red) Ring (Green) Ring Owner (Green) DIDO (Red) Per 10/100/1000T RJ45 PoE+ Interfaces (Port 1 to Port 24): PoE-in-Use (Amber) LNK/ACT (Green) 100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24): 1000Mbps LNK/ACT (Green) 100Mbps LNK/ACT (Amber) |
| Dimensions (W x D x H) | 440 x 300 x 44 mm, 1U height |
| Weight | 3740g |
| Power Requirements | Dual 48~56V DC (>53V DC for PoE+ output recommended), 11A |
| Power Consumption | Max. 33 watts/112.51 BTU (Power on without any connection) Max. 536 watts/1828.90 BTU (Full loading with PoE function) |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard - Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard - Per port 52V~56V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Budget | 48V Power input - Single power input: 240W maximum (depending on power input) - Dual power input: 300W maximum (depending on power input) 52~56V Power input - Single power input: 240W maximum (depending on power input) - Dual power input: 440W maximum (depending on power input) ?Dual power input must be the same as DC voltage, like dual 56V |
| Max. Number of Class 2 PDs | 24 |
| Max. Number of Class 3 PDs | 24 |
| Max. Number of Class 4 PDs | 16 |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control |
| Port Status | Display each port?s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX / RX / Both Many-to-1 monitor |
| VLAN | IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP (GARP VLAN Registration Protocol) Up to 256 VLAN groups, out of 4096 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 14 trunk groups with 16 ports per trunk group |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet |
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups IPv4 IGMP querier mode support |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 255 multicast groups IPv6 MLD querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 10Kbps~13000Mbps Egress: 100Kbps~13000Mbps |
| Layer 3 Function | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing IPv4 OSPFv2 dynamic routing |
| Management | |
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSH, TLS, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB IEEE 802.1X PAE LLDP |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management (CFM) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 1588 PTPv2 RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 FRC 3810 MLD version 2 ITU G.8032 ERPS Ring ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
4 x 10GbBASE-SR/LR SFP+ yuvs (Port-25 ile Port 28 arası)
1 x Konsol Port
IP30, -40~75 Derece C
| Diğer Özellikler | |
|---|---|
| Stok Kodu | HBCV00002PRYA5 |
| Marka | Planet |
| Stok Durumu | Var |
