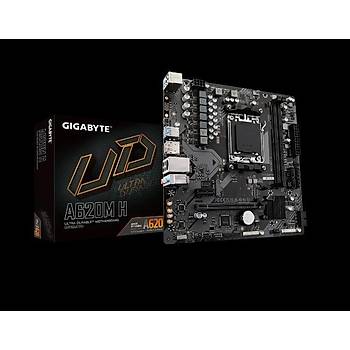

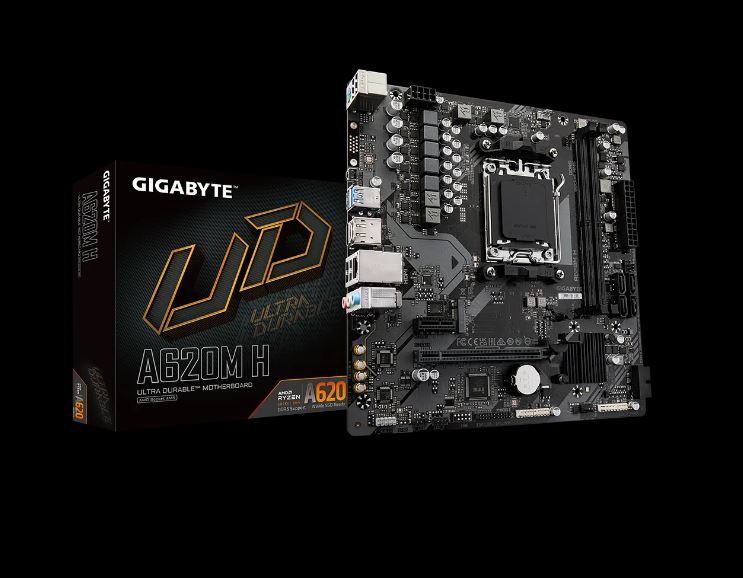

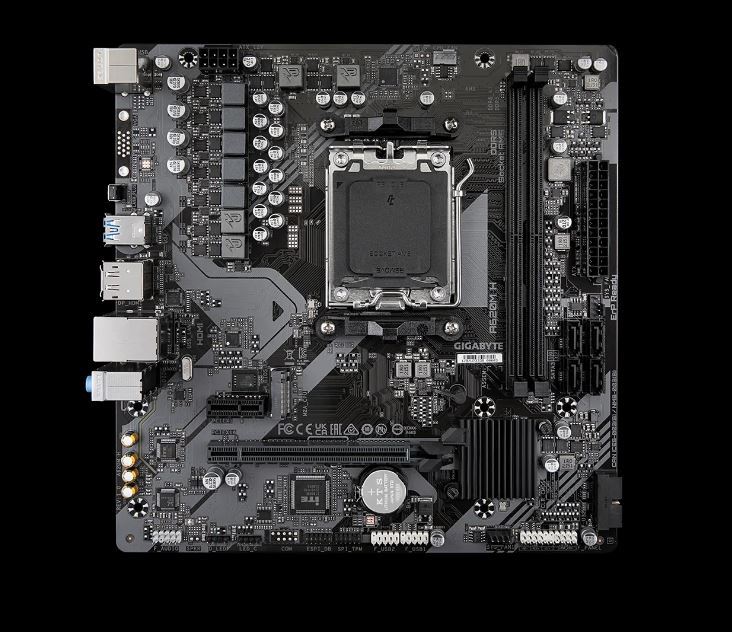

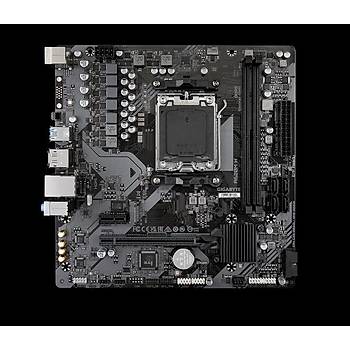

AMD AM5 A620 DDR5 HDMI ANAKART

1. AMD Socket AM5, support for: AMD Ryzen? 7000 Series Processors Go
to GIGABYTE's website for the latest CPU support list.
Please refer "CPU Support List" for more information.
? Chipset
1. AMD A620
? Memory
1. Support for DDR5 6400OC6200OC6000OC5600OC520048004400 MTs memory
modules
2. 2 x DDR5 DIMM sockets supporting up to 96 GB 48 GB single DIMM
capacity of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx82Rx81Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking AMD EXPO? and
Extreme Memory Profile XMP memory modules
The CPU and memory configuration may affect the supported memory types,
data rate speed, and number of DRAM modules, please refer to "Memory
Support List" for more information.
? Onboard Graphics
Integrated Graphics Processor:
1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144
Hz
* Support for DisplayPort 1.4 version.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
Graphics specifications may vary depending on CPU support.
Support for up to 3 displays at the same time
? Audio
1. Realtek® Audio CODEC
2. High Definition Audio
3. 245.17.1-channel
* You can change the functionality of an audio jack using the audio
software. To configure 7.1-channel audio, access the audio software for
audio settings.
? LAN
1. Realtek® GbE LAN chip 1 Gbps100 Mbps10 Mbps
? Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
2. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
? Storage Interface
CPU:
1. 1 x M.2 connector Socket 3, M key, type 2580 PCIe 4.0 x4x2 SSD
support
Chipset:
2. 4 x SATA 6Gbs connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
? USB
CPU:
1. 2 x USB 3.2 Gen 1 ports on the back panel
2. 1 x USB 2.01.1 port on the back panel
Chipset:
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
4. 7 x USB 2.01.1 ports 3 ports on the back panel, 4 ports available
through the internal USB headers
? Internal IO Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x M.2 Socket 3 connector
8. 4 x SATA 6Gbs connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.01.1 headers
13. 1 x Trusted Platform Module header For the GC-TPM2.0 SPIGC-TPM2.0
SPI 2.0 module only
14. 1 x Clear CMOS jumper
? Back Panel Connectors
1. 4 x USB 2.01.1 ports
2. 1 x PS2 keyboardmouse port
3. 1 x Q-Flash Plus button
4. 2 x USB 3.2 Gen 1 ports
5. 1 x DisplayPort
6. 1 x HDMI port
7. 1 x RJ-45 port
8. 3 x audio jacks
? IO Controller
1. iTE® IO Controller Chip
? HW Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
* Whether the fan speed control function is supported will depend on the
fan you install.
? BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
? Unique Features
1. Support for GIGABYTE Control Center GCC
* Available applications in GCC may vary by motherboard model. Supported
functions of each application may also vary depending on motherboard
specifications.
2. Support for Q-Flash Plus
3. Support for Q-Flash
? Bundled Software
1. Norton® Internet Security OEM version
2. LAN bandwidth management software
? Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
? Form Factor
1. Micro ATX Form Factor; 23.0cm x 22.5cm
İşlemci Soket Tipi AM5
Chip Set AMD A620
Ram Slot Sayısı 2 Adet
Max Ram Desteği 48GB
RAM Tipi DDR5
Ram Frekans Hızı 4400 MHz,4800 MHz,5200 MHz,5600 MHz,6000 MHz,6200 MHz,6400 MHz
İşlemci Desteği Ryzen 7
Anakart Boyutu Micro ATX
USB 3.2 4 Adet
USB 3.1 Yok
USB 3.0 Yok
USB 2.0 8 Adet
PCI Express 4.0 x16 Yok
PCI Express 3.0 x16 Yok
PCI Express 2.0 x16 Yok
PCI Express x16 1 Adet
PCI Express x1 1 Adet
PCI Slot Yok
M.2 Slotu 1 Adet
Sata 6Gb/s 4 Adet
DVI Yok
HDMI Var
Ses Kanal Sayısı 7.1 Kanal
Satış Garanti Süresi (ay) 24
EAN 4719331855512
